MTX Forward Fold Camper Trailer

A tough mid-sized forward fold camper trailer, offering real comfort and loads of features. Go anywhere, set up your base camp and kick back. A quick and easy setup, really all you have to do is unclip the lightweight, gas strut assisted lid, open it up by hand (or wind out using the winch), then set the inner poles into position – a process that takes just minutes.

The trailer measures 4.35m x 1.75m x 1.41m. Tough construction with a heavy duty hot dipped galvanized Q345 RHS steel chassis and drawbar. Independent trailing arm suspension with heavy duty coil springs, and twin shock absorbers. Electric brakes, 16" rims, spare tire, stabilizers, ...

NZ compliant and installed 240V electrical system, as well as deep 12V set up with deep cycle AGM battery included. LED lighting, stereo and electrical control panel. Includes bonus solar panel that needs to be hooked up. 100L water tank and electric pump system.

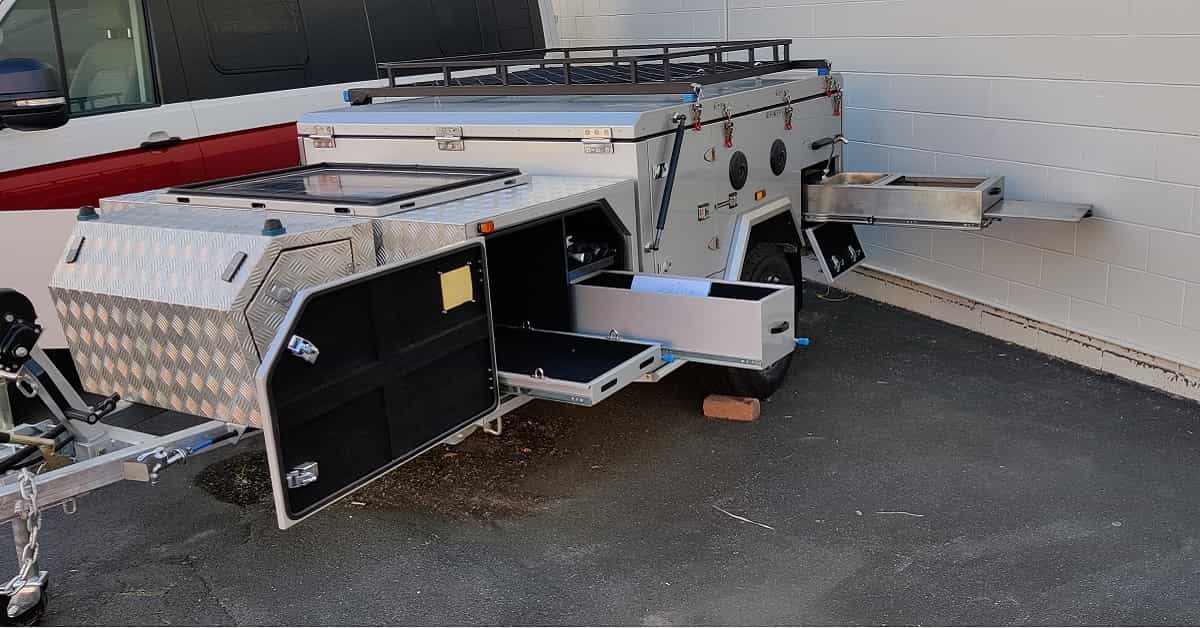

This trailer also features a stainless steel slide-out kitchen drawer, with a built-in sink and water pump system good to go, LED lighting and bench extension and space for a stove. Also has a fridge slide, all wired up and ready to connect to your fridge.

The roomy interior is well finished with durable wood grain finish materials and includes a full sized high density foam double bed, a dinette lounge with sofa and adjustable table, which converts into a second bed, lots of windows with mozzie proof mesh options, as well as loads of storage options.

Includes an exterior awning that can be set up alongside the trailer offering heaps of extra space, including walls, PVC floor, poles, rope and pegs.

Lots of storage options with storage for the awning, fridge slide, and extra storage draws – all with dust-proof and waterproof seals and lockable. Front aluminium storage box for gas bottle and extras. Also includes an extra custom made side swing boat/cargo rack system for your toys and extras.

A quality product built by a reputable major Chinese supplier of well-known Australian off road camper trailers with years of expertise and experience.

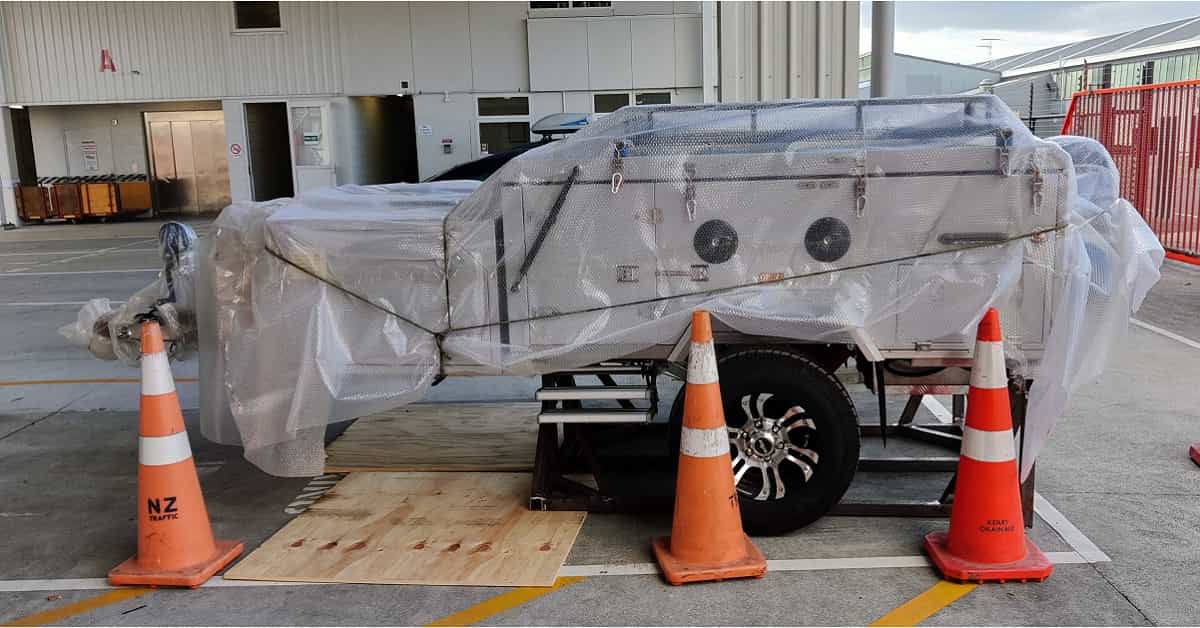

New camper trailer imported directly by Intents Outdoors. Recently registered with WOF and ready to go. Contact us for viewing or more info 021 040 5991 - based in Mt Roskill, Auckland.

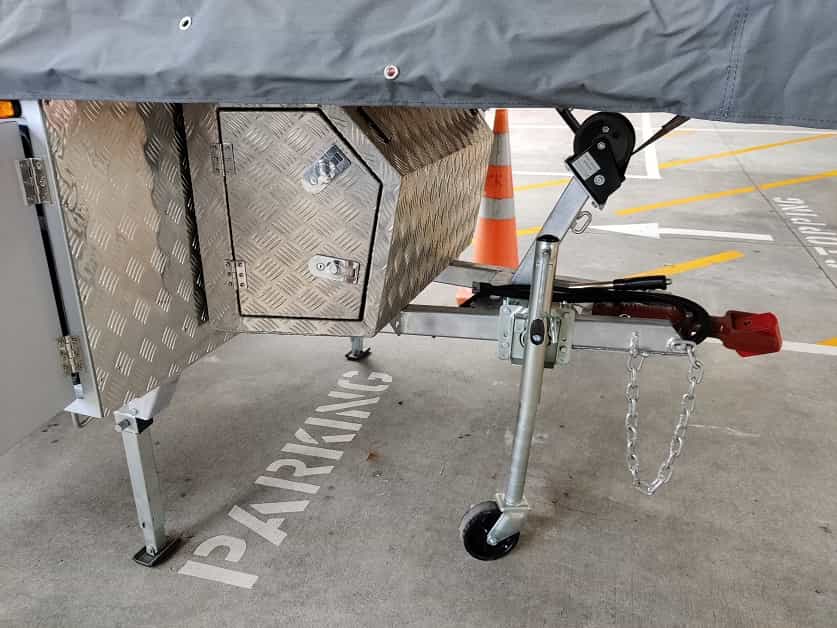

  • Super heavy duty 10" Easylift jockey wheel.

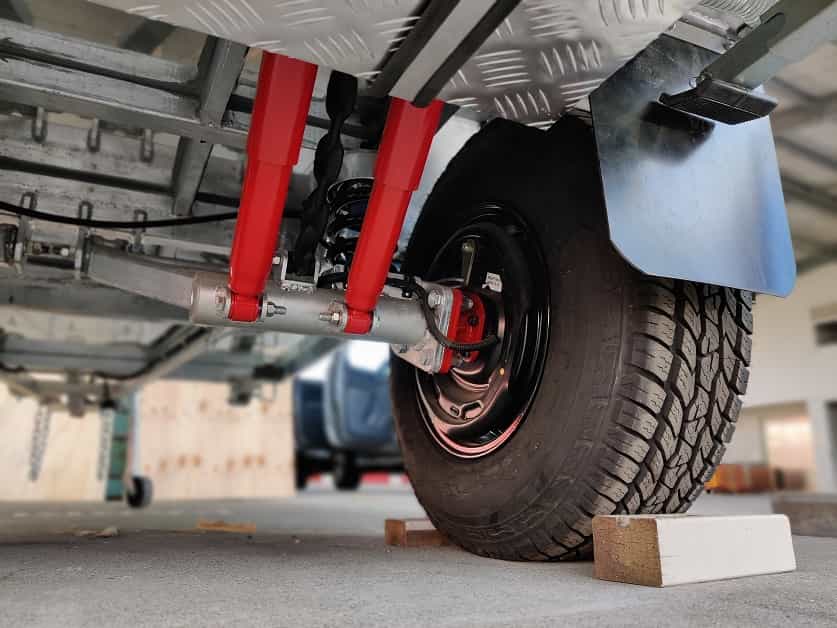

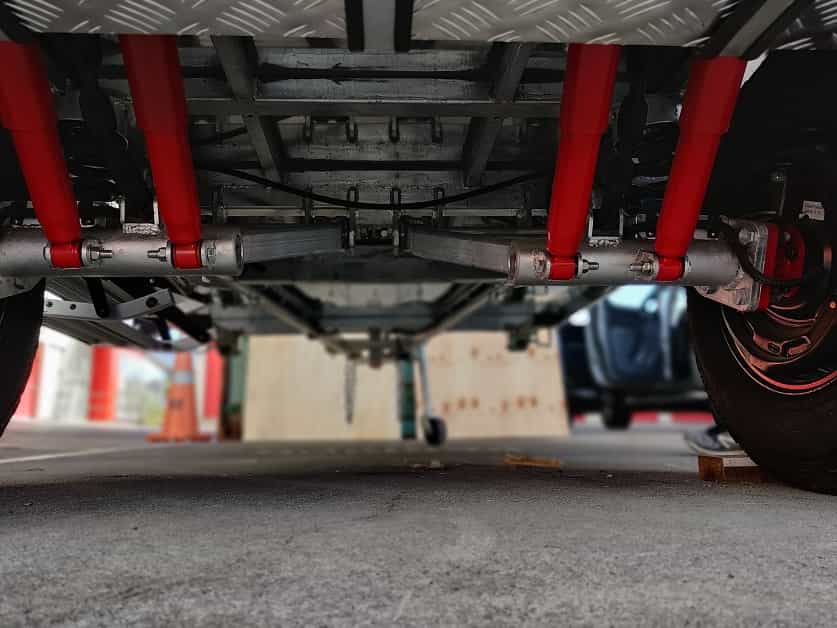

  • Heavy duty coil springs, Twin shock absorbers
  • Independent trailing arm suspension
  • 3.0t rated axles with heavy duty wheel bearings
  • 12” electric brakes

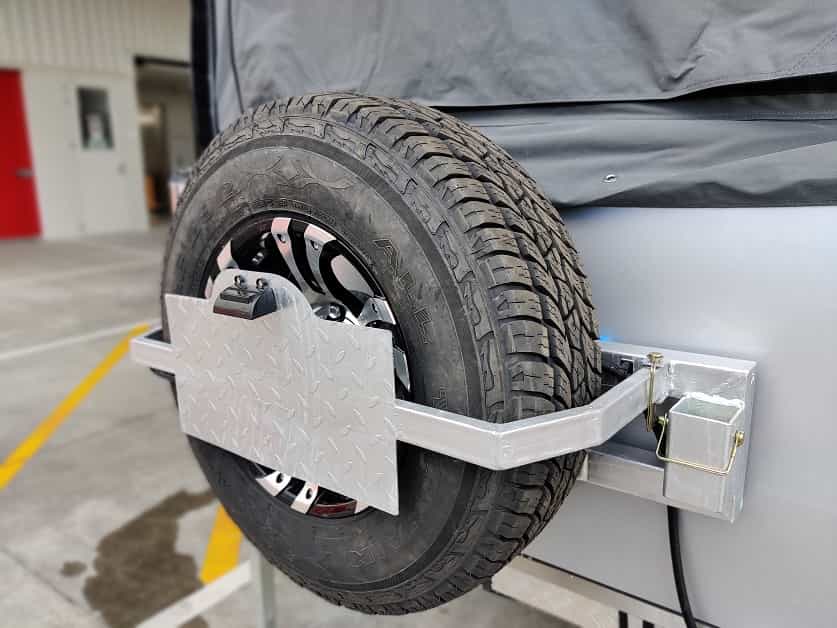

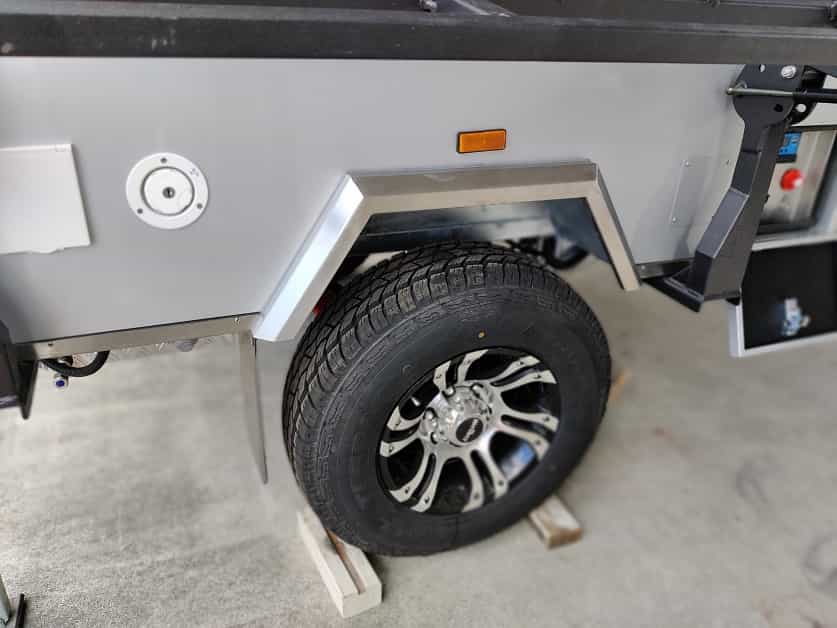

  • 16" Aluminum Rims and 265/75 R16 AT3 tires, and rear mounted spare tire
  • Heavy duty hot dipped galvanized chassis and drawbar constructed with Q345 RHS steel
  • LED tail lights, number plate and clearance lights

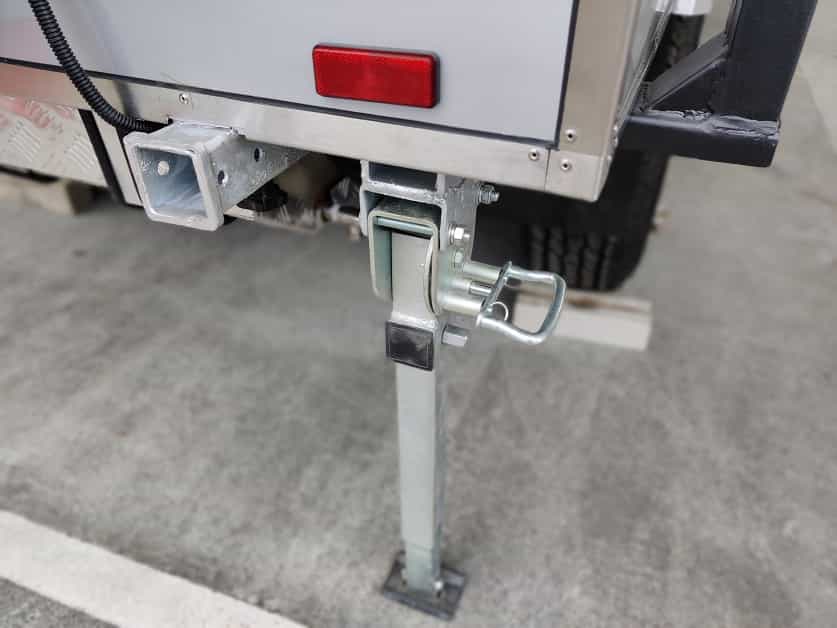

  • Stabiliser Legs: 4 x Heavy Duty lockable & adjustable
  • Gas strut assisted single piece Aluminium plate folded cover
  • Front and rear hand winches to open/close cover

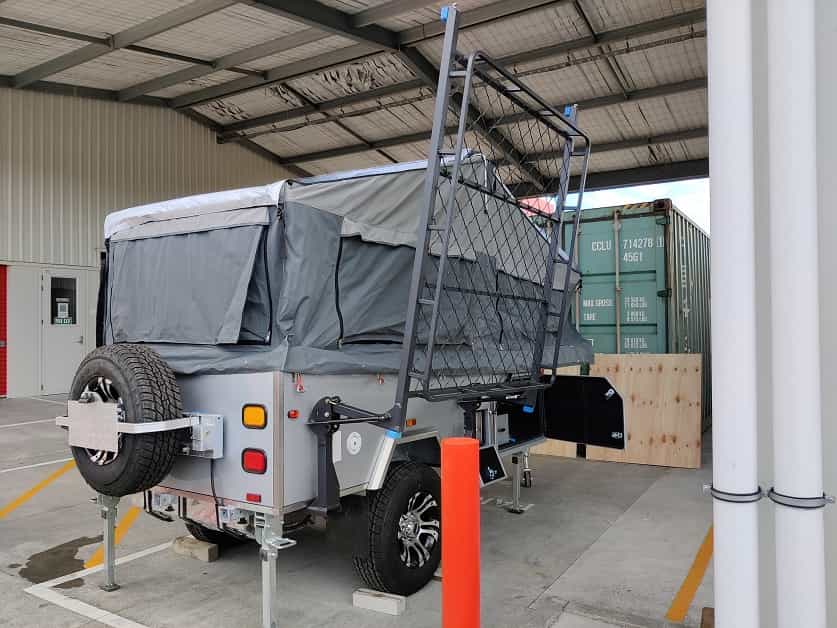

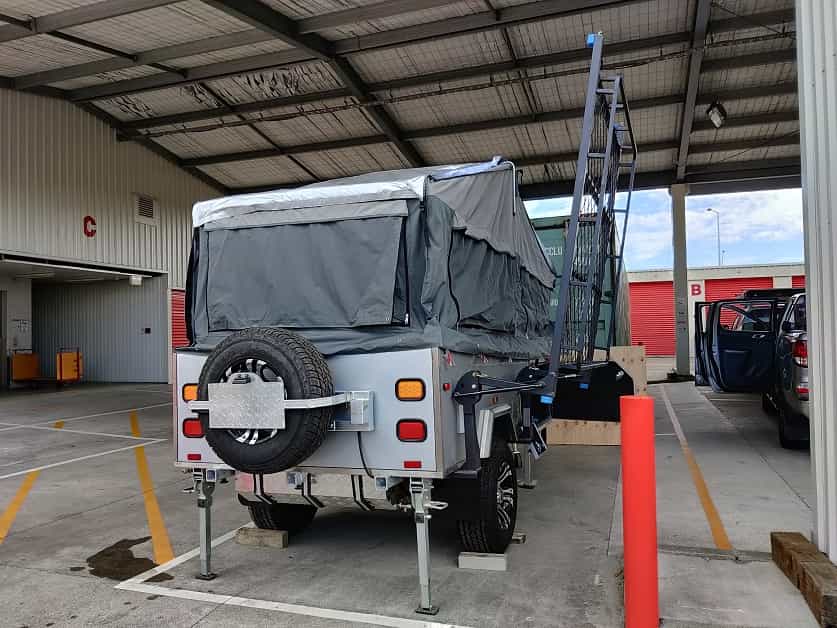

  • Large easy-to-use side swing cargo rack
  • NZ hitch coupling
  • 1 x 10L jerry can holders and 1 x 5.0kg gas bottle holders

Electrical system

  • New NZ installed and certified 240V electrical system and sockets

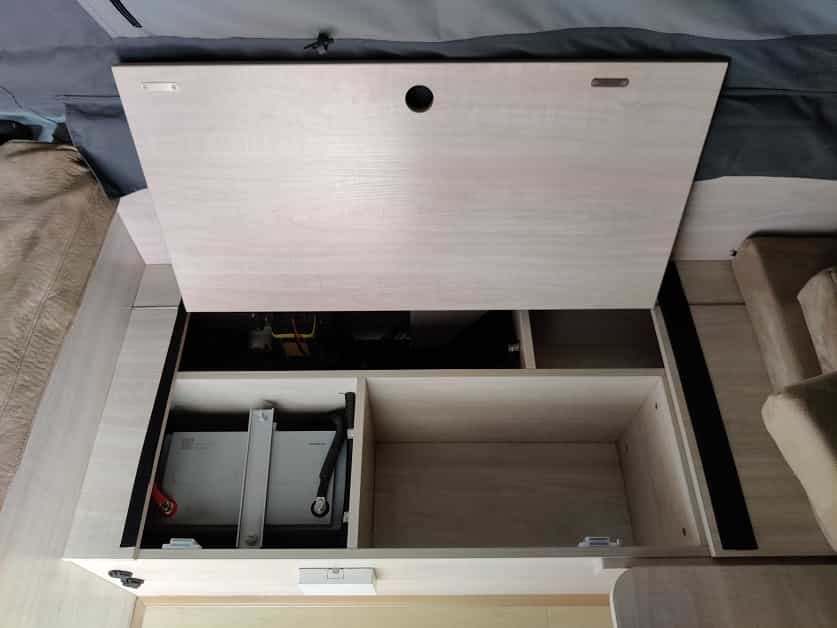

  • 100Ah AGM battery included with multiple 12V sockets

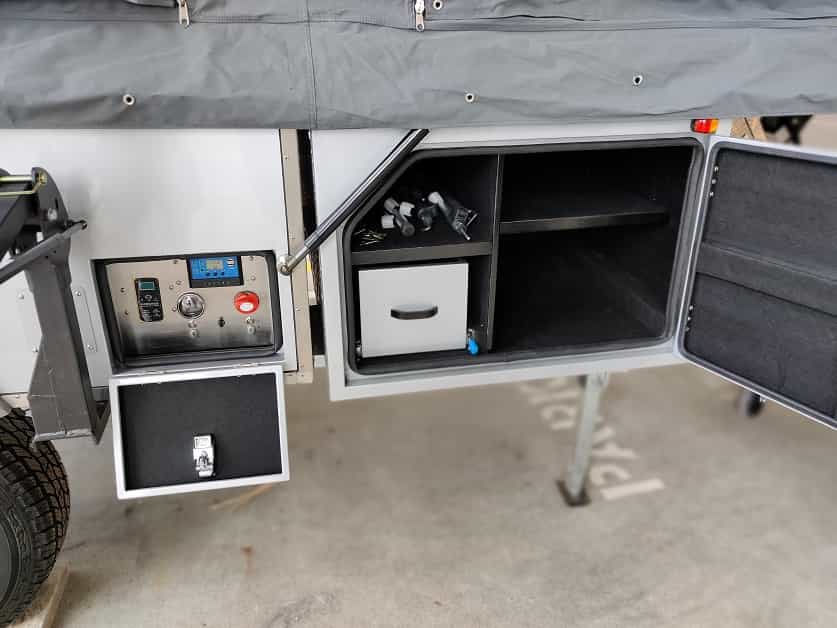

  • Voltage and water level meters
  • LED lighting system

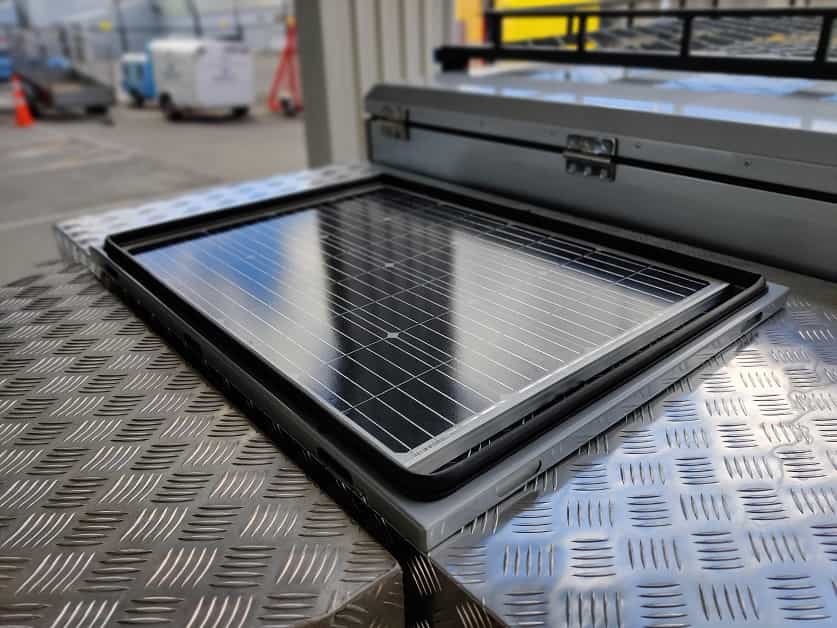

  • Solar panel

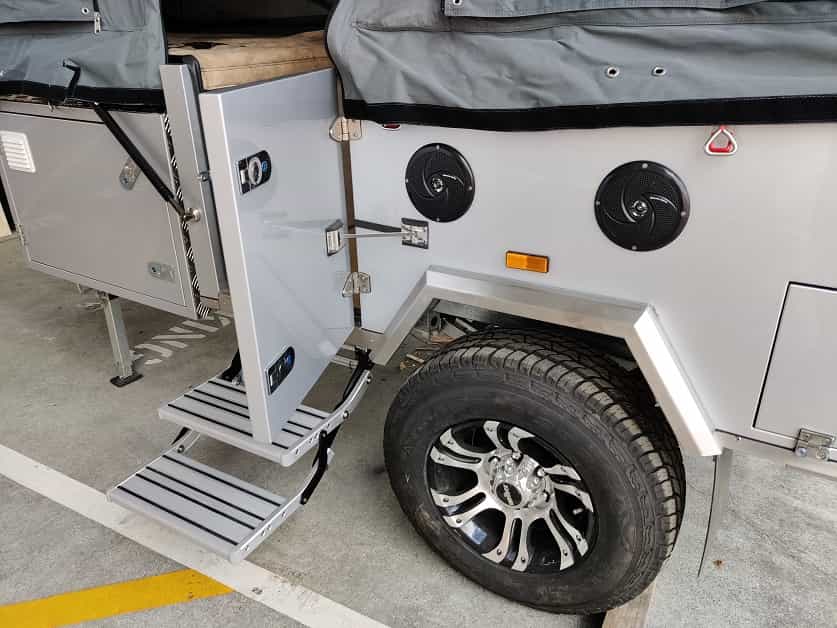

  • Stereo and external speakers

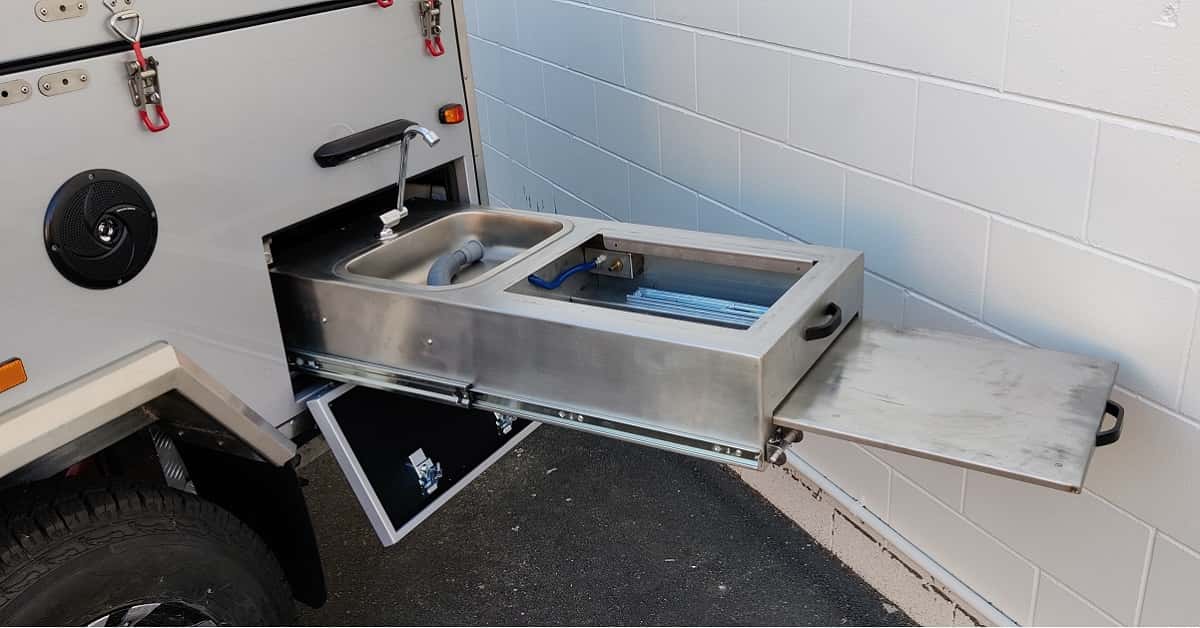

  • Stainless steel kitchen slide out drawer

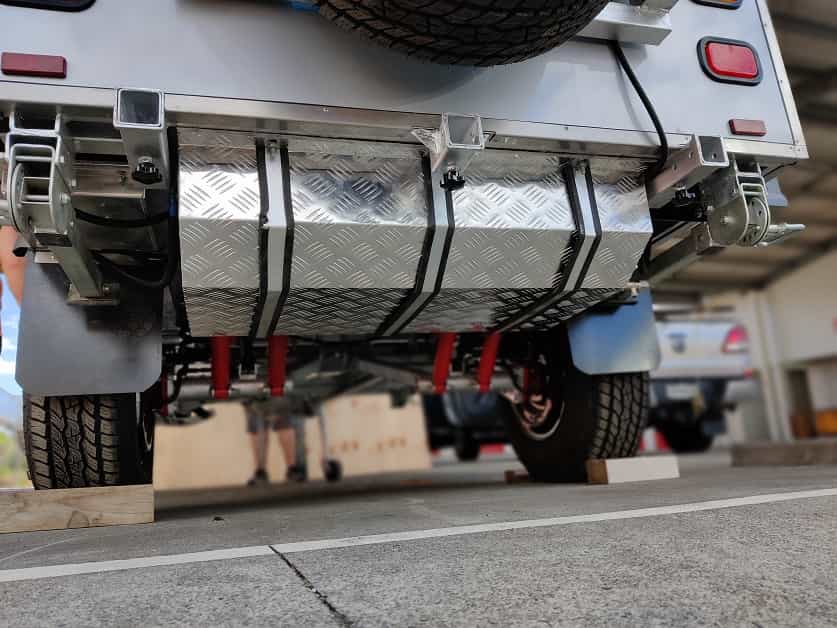

  • 100L stainless steel water tank with Al checkered plate protection
  • Electric water pump with taps at sink and front of trailer

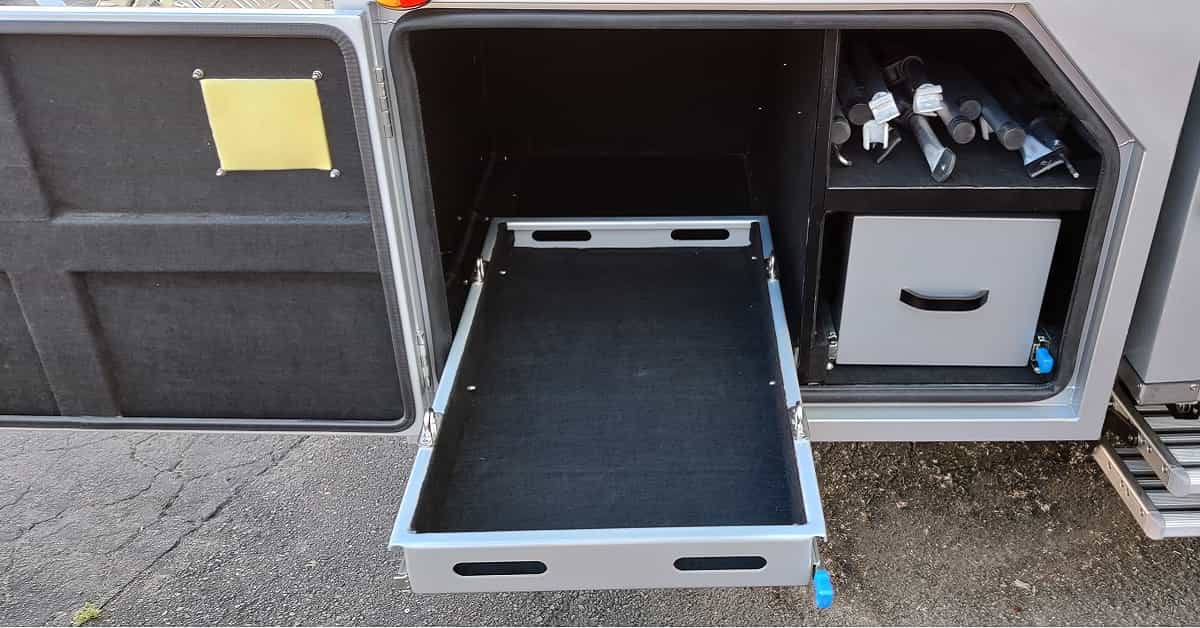

  • Fridge slide with power to the fridge
  • AL fridge slide 660 deep x 380 wide x 455mm high (internal measurements)
  • Fridge compartment with 12V plug, built in ventilation fan and LED light
  • * Original Gas cooker removed (was not NZ compliant) ... can easily use standard portable camp cook top or professionally install a gas cook top


  • Internal 4m x 1.65m living area

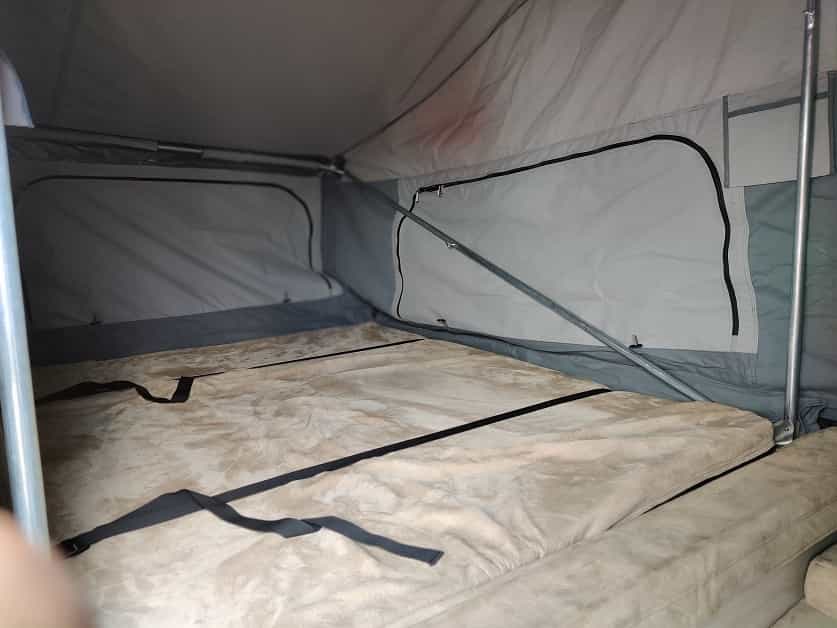

  • Queen size high density foam mattress 1900 x 1550 x 80mm
  • Internal Finish: wood grain finish with moisture resistant laminate flooring
  • Adjustable height table
  • Surrounding plush upholstered seating area and cushions
  • Table and surrounding sofa also converts to a bed


  • Quality 13oz (440gsm) canvas tent with double reinforced stitching
  • Top rain cover for extra protection
  • Internal 4m x 1.65m living area

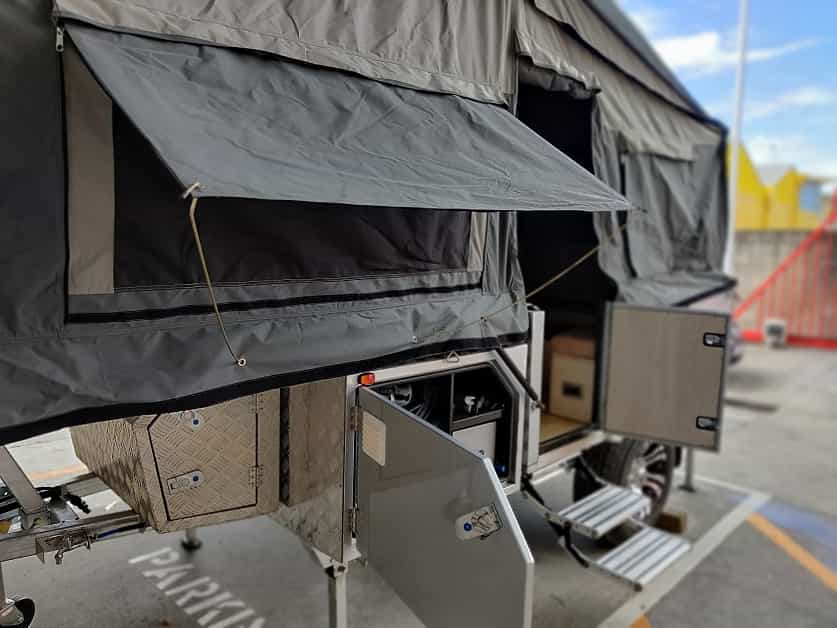

  • Windows with bug proof mesh screens, window awnings and poles
  • Outside awning area measuring 4m x 2.4m with full awning walls and PVC floor
  • Easy to use clip lock poles


  • All storage is lockable

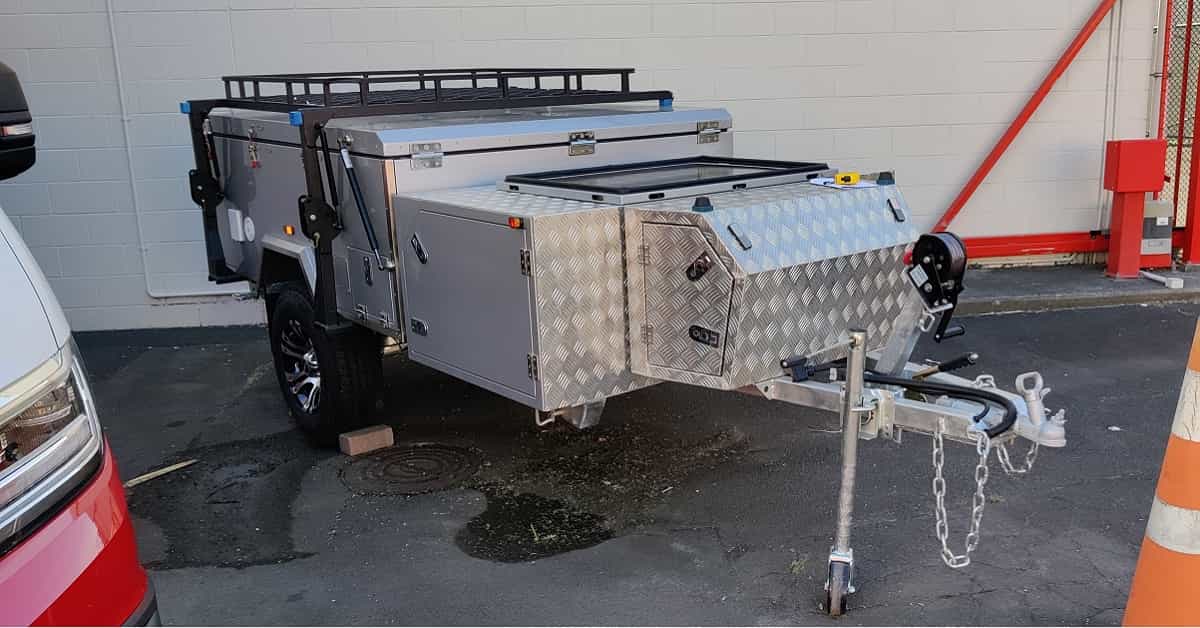

  • Large front storage box 88 x 53 x 165cm

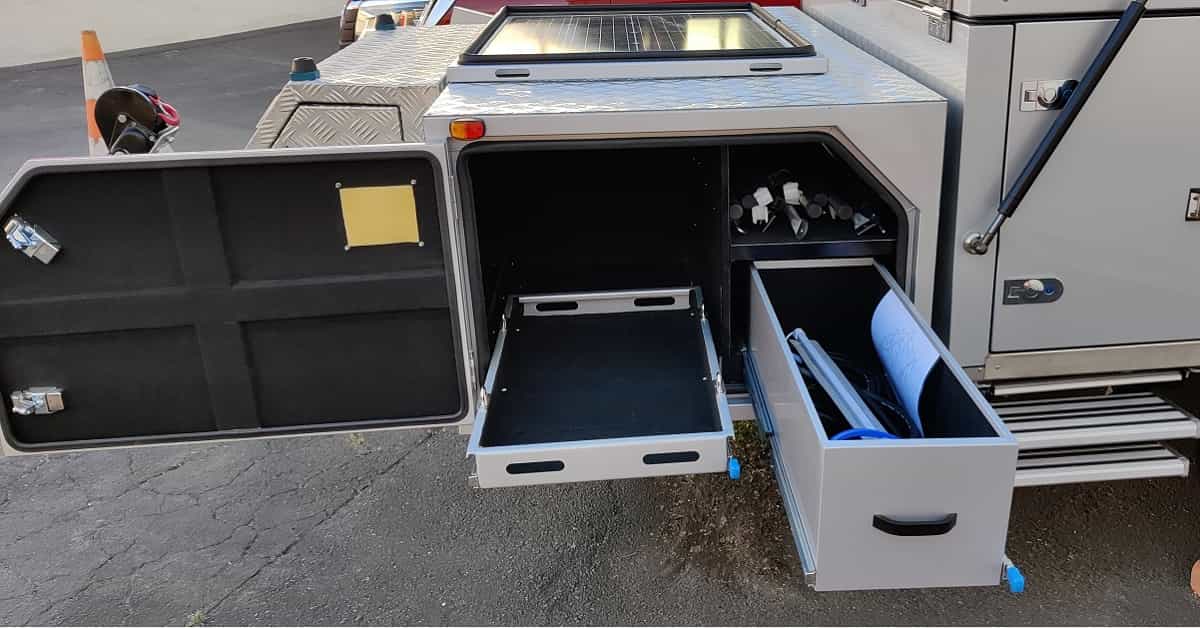

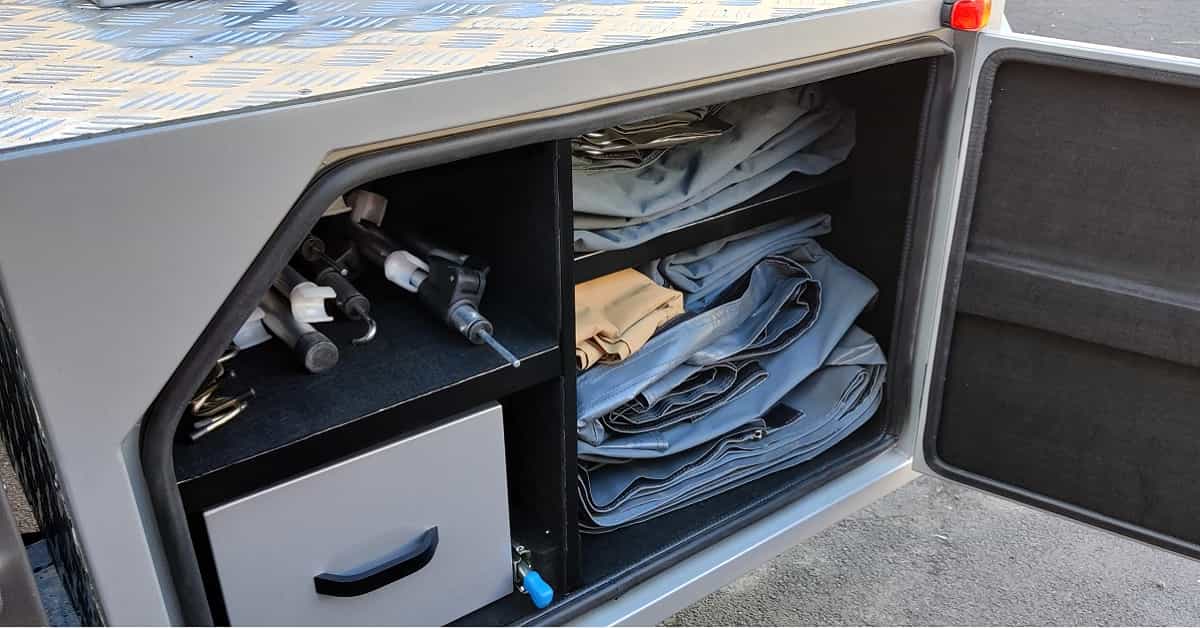

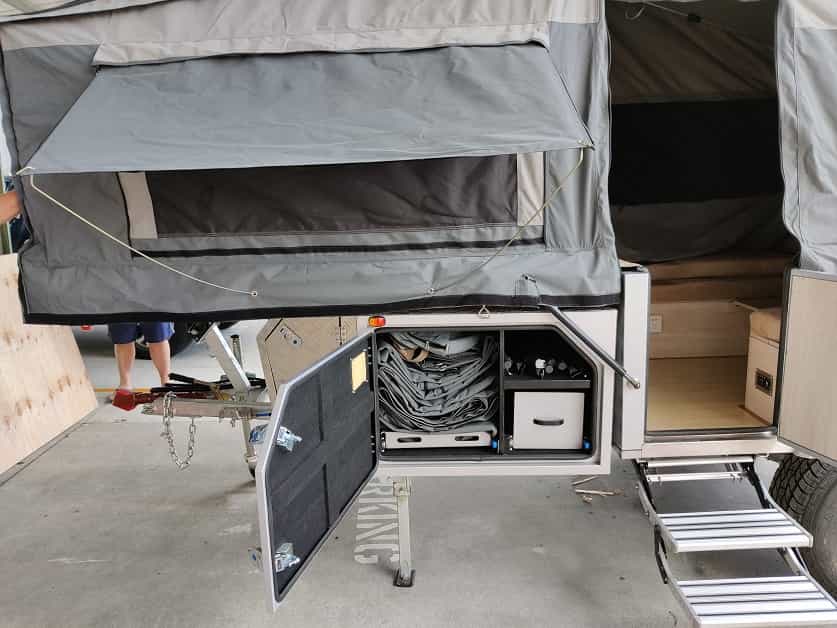

  • Pole storage compartment and multiple sliding storage drawers
  • Internal storage under seating
  • Top luggage rack

Other Specifications

  • Tare Weight: 950kgs (excluding battery system).
  • Maximum Trailer Weight: 2,000kgs.
  • Tow Ball Weight: 120kgs (empty).
  • Size: 4.35m x 1.75m x 1.41m
